Product Introduction
[Super fuel saving] Received first prize of national science and technology progress for whole vehicle, brand new powertrain, 19 super fuel saving technologies, and the fuel consumption is reduced by 4%.
[Ultra light weight] There are six weight reduction solutions for the whole vehicle, with the weight reduced to as low as 8.35 tons
[Man machine comfort] 3-color fashionable appearance, exclusive color scheme, comparable to 15 super configuration of luxury car, pilot class cockpit.
[Internet smart travel] a new generation of voice control and interaction technology, enjoying the top 10 all-round safe auxiliary driving systems of smart travel.

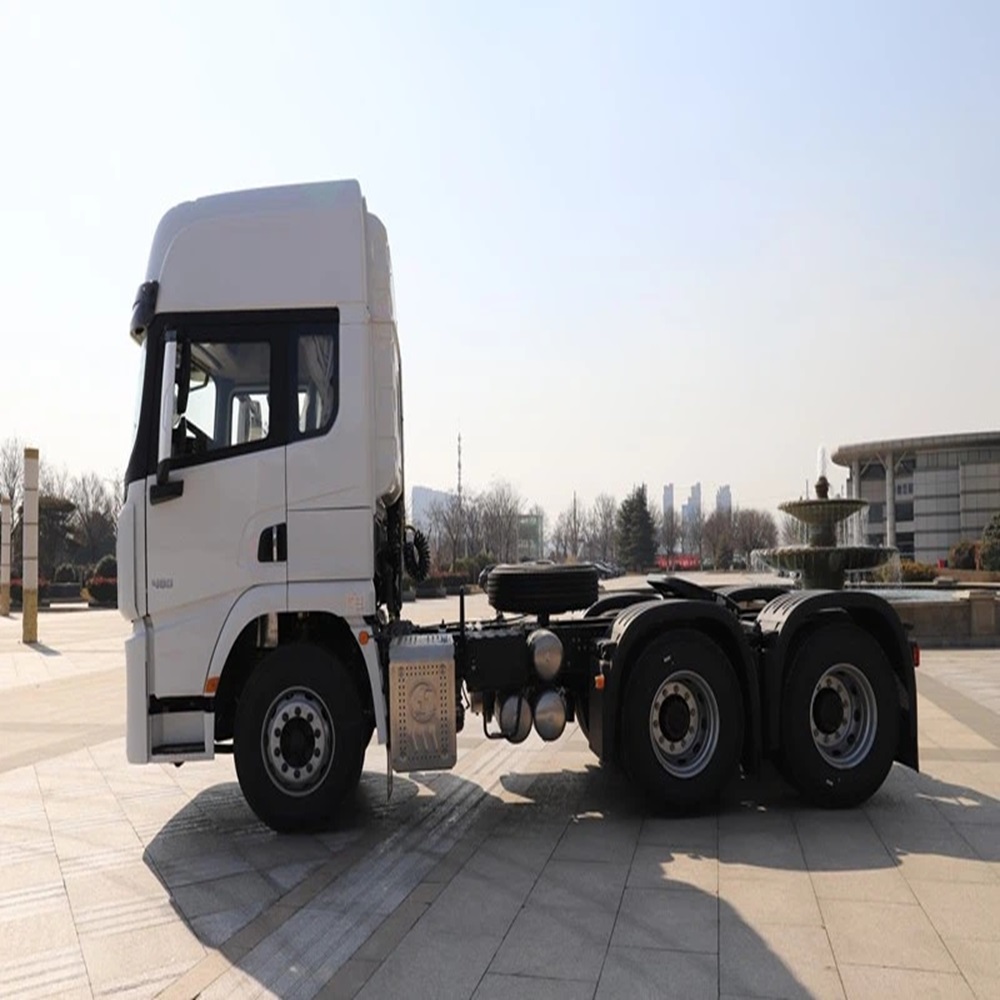

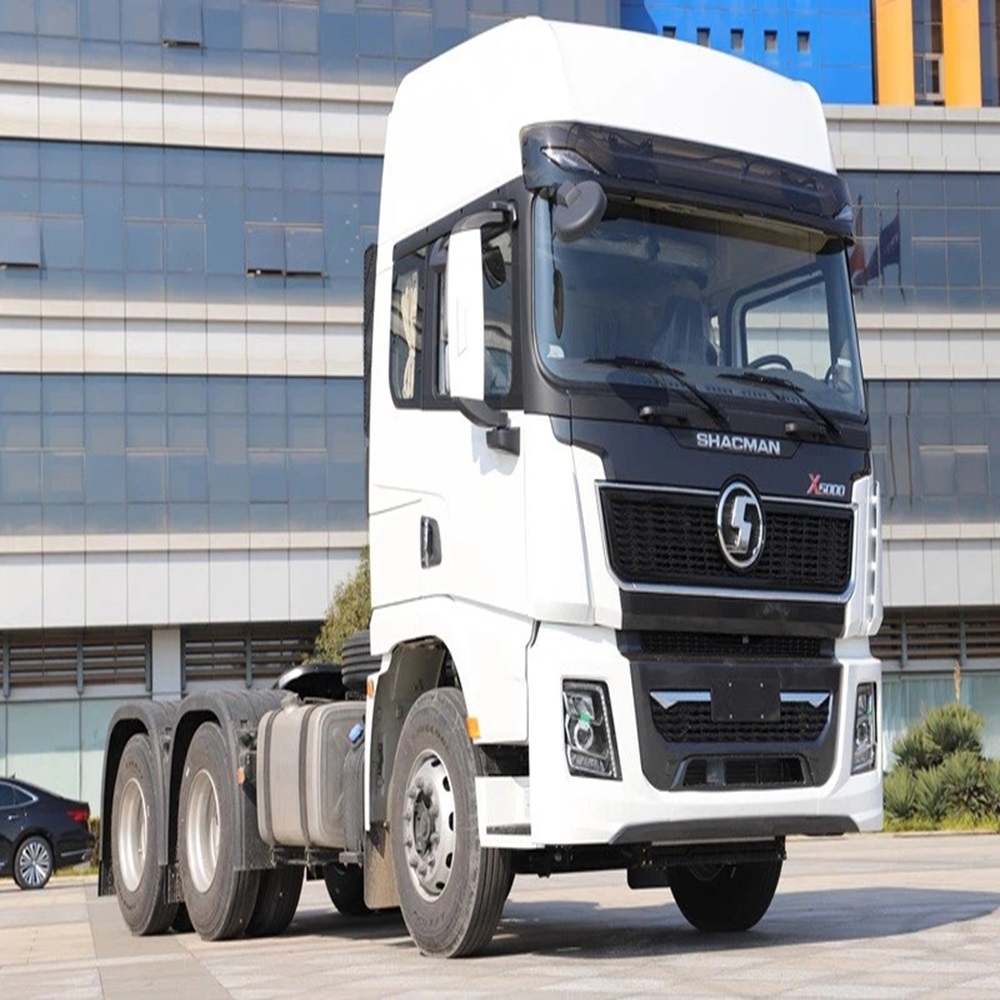

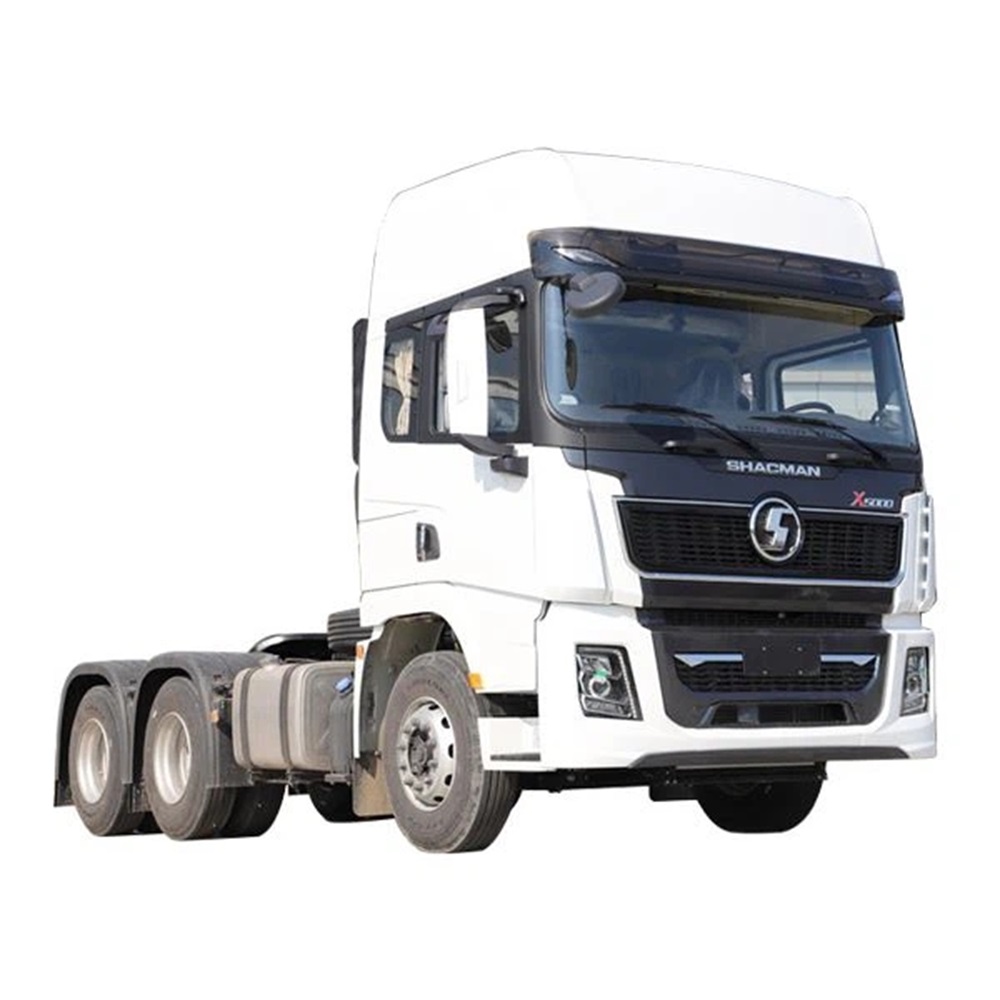

The X5000 series leads the new era of intelligent driving, and ensure users to enjoy intelligent travel.
Dependability
6x4 dump truck is matched with the outer three-layer frame, and the front extension beam + middle towing hook are casted to improve the bearing capacity
The motion characteristics of wedge mount are accurately calibrated to greatly improve the NVH performance of powertrain accessory system
The suspension support is made of cast steel, the tensile strength is increased by 26.7%, the strength is improved, and the performance in high pressure and low temperature is improved
Four-point wedge suspension + leaf spring auxiliary support structure (SHACMAN patented technology), the structure is stable and reliable, which is conducive to shell protection and sealing
The industry's first maintenance free direct flow air filter, honeycomb filter element, direct air flow in and out, and low air inlet resistance
The heavy-duty dump truck adopts integral reinforced balance shaft assembly + large-diameter through shaft + auxiliary balance shaft, national invention patented technology, the bearing capacity ranks first in the industry and has good adaptability to road conditions
Product Parameters
|
X5000 Trailer Truck |
|||||||
|
Drive |
4*2 |
6*4 |
|||||
|
Vehicle versions |
Compound |
Light-weight |
Compound |
Enhanced |
Super |
||
|
GCW(t) |
50 |
55 |
70 |
90 |
120 |
||
|
|
Cab |
Type |
Extended high roof/Extended flat roof |
||||
|
|
Suspension |
Air suspension/Hydraulic suspension |
|||||
|
|
Seat |
Air main seat/Hydraulic main seat |
|||||
|
|
Air conditioner |
Electric automatic constant temperature A/C; Single cooling A/C |
|||||
|
Engine |
Brand |
WEICHAI&CUMMINS |
|||||
|
|
Emmission Standards |
EURO III/ V/ VI |
|||||
|
|
Rated Power(hp) |
420-560 |
|||||
|
|
Rated Speed(r/min) |
1800-2200 |
|||||
|
|
Max torque /Speed range(N.m/r/min) |
2000-2550/1000-1500 |
|||||
|
|
Displacement(L) |
11-13 |
|||||
|
Cluch |
Type |
Φ 430 diaphragm spring clutch |
|||||
|
Transmission |
Brand |
FAST |
|||||
|
|
Shift type |
MT(F10/F12/F16) |
|||||
|
|
Max torque(N.m) |
2000 (2400N.m for engines over 430hp) |
|||||
|
Frame |
Dimensions(mm) |
(940-850)×300 |
(940-850)×300 |
(940-850)×300 |
850×300(8+5) |
850×300(8+7) |
|
|
Axle |
Front axle |
7.5t axle |
7.5t axle |
7.5t axle |
7.5t axle |
9.5t axle |
|
|
|
Rear axle |
13t double-stage |
13t single-stage |
13t double-stage |
13t double-stage |
16t double-stage |
|
|
|
Ratio |
4.266（3.866） |
3.364（3.700） |
3.866（4.266） |
4.266（4.769） |
4.266（4.769） |
|
|
Suspension |
Leaf springs |
F10/R15 |
F3/R4 |
F10/R12 |
F10/R12 |
F10/R12 |
|
|
Tire |
Type |
12R22.5 |
12R22.5 |
12.00R20 |
12.00R20 |
12.00R20 |
|
|
Performance
|
Economic/Max speed(km/h) |
50-70/100 |
60-85/110 |
50-70/100 |
45-60/95 |
45-60/95 |
|
|
Minimum clearance of chassis(mm) |
245 |
245 |
270 |
270 |
270 |
||
|
Max gradeability |
30% |
27% |
30% |
30% |
30% |
||
|
Saddle height above ground(mm) |
1385±20 |
1320±20 |
1410±20 |
1410±20 |
1420±20 |
||
|
Front/rear turning radius(mm) |
2120/2000 |
2650/2200 |
2650/2200 |
2650/2200 |
2650/2200 |
||
|
Weight |
Curb weight(t) |
6.8 |
8.5 |
9.2 |
9.6 |
9.8 |
|
|
Size |
Dimensions(mm) |
6150×2490×(3170-3685) |
6825×2490×(3155-3660) |
6825×2490×(3235-3725) |
6825×2490×(3235-3725) |
6825×2490×(3255-3745) |
|
|
|
Wheel base(mm) |
3600 |
3175+1400 |
3175+1400 |
3175+1400 |
3175+1400 |
|
|
|
Tread(mm) |
2036/1860 |
|||||
|
Basic equipment |
Four-point air suspension, electric tilt cab, DRL, electric automatic constant temperature A/C, electric window lifter, electric heated rearview, central locking (dual remote control), multi-function steering wheel |
||||||
|
Options |
Integral fenders, Telematics, Jost 90 saddle, hydraulic retarder, PTO |
||||||
